Customizable Glazed Tile Roll Forming Machine with 18 Stations and Chain Drive for Steel Roof Step Tile Production

Brand Name : HC

Model Number : HC40-165-990

Certification : CE

Place of Origin : China

MOQ : 1set

Payment Terms : L/C,T/T

Supply Ability : 20 sets/month

Delivery Time : 25-30days

Packaging Details : Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.

Material Type : PPGI/GI

Material Width : 1220mm

Material Thickness : 0.3-0.6mm

Roller Stations : 18Stations

Roller & Shaft Material : 45# Steel Quenching and Plating

Diameter of Shaft : Φ70mm

Cutter Material : CR12

Drive Type : Chain Drive

Speed : 4m/min

Total Power : 5.5+5.5KW

Voltage : 380V 50Hz 3Phases(can be customized)

Contact Now

Customized GI / PPGI Steel Roof Step Tile Making Machine

Product Overview

The glazed tile roofing sheet machine is designed for manufacturing glazed tile roofing sheets used in various construction applications including residential buildings, commercial structures, industrial facilities, and agricultural greenhouses. The equipment can be customized according to specific customer requirements.

Production Process

Uncoiling
Feeding material into machine
Roll forming
Measuring length
Step formed
Auto cutting
Products receiving

Main Technical Parameters

Parameter	Specification
Material Type	PPGI/GI
Thickness	0.3-0.6mm
Width	1220mm
Roller Stations	18 Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	4 m/min
Total Power	5.5 + 5.5 KW
Voltage	380V 50Hz 3 phases

Component Specifications

5T Manual Decoiler

Customizable Glazed Tile Roll Forming Machine with 18 Stations and Chain Drive for Steel Roof Step Tile Production

This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

Shaft & Roller

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Hydraulic Pump Station

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

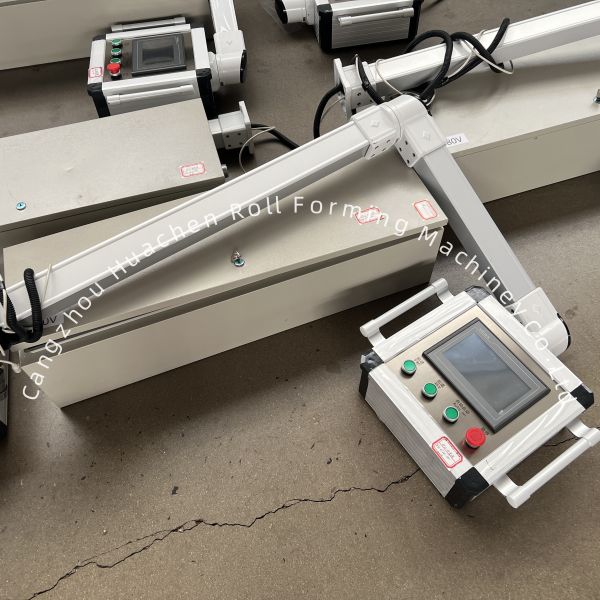

Touch Screen Control Cabinet

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

Pressing Section & Cutter

Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.

Output Table

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Included Spare Parts

Component	Quantity
Chains	2 Sets
Solenoid Valve	1 Set
Travel Switch	2 Sets
Open-End Wrenches	2 Sets
Hexagon Wrench	2 Sets
Counter	1 Set
Wrench	2 Sets
Oil Seals	1 Set

Additional Machine Photos

Key Features

Professional Expertise

15 years' rich experience! Specialized in roll forming machine since 1998. Continuous quality improvements.

Cost-Effective

Save your money from every part! Low labor cost, convenient transportation, and complete supporting industries.

PLC Control System

Ensuring high accuracy and easy operation! Full automatic operation with simple length and quantity input.

Customization Options

OEM / ODM services available! Customer designs, colors, and logos are accepted with expert implementation.

Comprehensive Warranty

One-year warranty with lifetime service! Replacement parts provided free of charge for quality-related issues during warranty period.

Service Support

One-Year product warranty
Training and installation available
Technical support for the entire machine lifecycle

Frequently Asked Questions

Can you make the machine according to my design or photo type?

Yes. We have an experienced team to work out the most suitable design and production plan for the machine.

How can we be assured that you will deliver us quality machine with spare parts?

1. Customers can send technical personnel to our factory for quality inspection. 2. We can send technicians to the buyer's factory for machine installation.

What is your guarantee policy?

Within the one-year period, we supply replacement parts free of charge for any damaged parts caused by quality problems. After two years, parts are available at factory cost.
